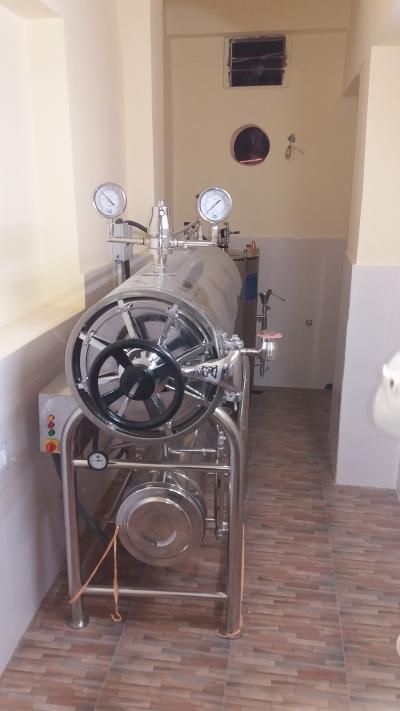

High Pressure Horizontal Sterilizer

Horizontal cylindrical Electrically operated at440vols. AC, 2phase, 50cycles. The sterilizeris pressure type steam jacked, made from 304 quality stainless steel. All joins are argon arc welded.Fitted with multiport operating valve, sterilizing vacuum drier, safety valve in jacket (spring), vacuum breaker, pressure gauge, compound gauge, dial thermometer, perforated tray, plug screen, steam trap and neoprene rubber gasket working pressure 20 lbs p.s.i. And Temperature range 2500 F, The door made of gun metal and covered with stainless steel lining and have automatic self locking devices. The outside will be well insulated. The boiler which is to be fitted below will be made of corrosion resistant 304 quality stainless steel it will be fitted with immersion heaters low water protection device, pressure controller, a contactor and toggle switch
